IPv6 - Static & RIPng 구성

■ RIPng(Next Generation 구성

- OSPF처럼 Process ID 사용
- RIPng 선언 이후 각 인터페이스별로 참여 여부 설정
- 라우팅 테이블 업데이트시 출발지 주소로 링크로컬 주소 사용
- 멀티캐스트 방식 업데이트(목적지 IP로 FF02::9 사용)
- 그 외 메트릭 요소로 홉 카운트 사요, 관리거리 값 120 사용
업데이트 주고 30초 등의 내용은 기존 RIP와 동일

선언 명령어

ipv6 router rip 1



■ IPv6 Stataic 구성



□ 라우터 & PC IP 주소 부여



R1

conf t
int fa0/0
ipv6 addr 2001:1:1:1::1/64
no sh
int s1/0
ipv6 addr 2001:12:12:12::1/64
no sh



R2

conf t
int s1/0
ipv6 addr 2001:12:12:12::2/64
no sh
int s1/1
ipv6 addr 2001:23:23:23::1/64
no sh
int s1/2
ipv6 addr 2001:24:24:24::1/64
no sh



R3

conf t
int s1/1
ipv6 addr 2001:23:23:23::2/64
no sh
int s1/3
ipv6 addr 2001:34:34:34::1/64
no sh



R4

conf t
int fa0/0
ipv6 addr 2001:4:4:4::1/64
no sh
int s1/2
ipv6 addr 2001:24:24:24::2/64
no sh
int s1/3
ipv6 addr 2001:34:34:34::2/64
no sh



PC1, 2

PC1
ip 2001:1:1:1::2/64 2001:1:1:1::1
PC2
ip 2001:4:4:4::2/64 2001:4:4:4::1



□ Static 라우팅 구성



R1

ipv6 unicast-routing
ipv6 route ::/0 s1/0



R2

ipv6 unicast-routing
ipv6 route 2001:1:1:1::/64 s1/0
ipv6 route 2001:34:34:34::/64 s1/1
ipv6 route 2001:34:34:34::/64 s1/2
ipv6 route 2001:4:4:4::/64 s1/2
ipv6 route 2001:4:4:4::/64 s1/1 25



R3

ipv6 unicast-routing
ipv6 route 2001:1:1:1::/64 s1/1
ipv6 route 2001:1:1:1::/64 s1/3 25
ipv6 route 2001:24:24:24::/64 s1/3
ipv6 route 2001:24:24:24::/64 s1/1
ipv6 route 2001:4:4:4::/64 s1/3
ipv6 route 2001:4:4:4::/64 s1/1 25
ipv6 route 2001:12:12:12::/64 s1/3 25
ipv6 route 2001:12:12:12::/64 s1/1



R4

ipv6 unicast-routing
ipv6 route 2001:12:12:12::/64 s1/2
ipv6 route 2001:12:12:12::/64 s1/3 25
ipv6 route 2001:23:23:23::/64 s1/3
ipv6 route 2001:23:23:23::/64 s1/2
ipv6 route 2001:1:1:1::/64 s1/3 25
ipv6 route 2001:1:1:1::/64 s1/2



---

■ 설정 초기화

R1
conf t
no ipv6 route ::/0 Serial1/0

R2
conf t
no ipv6 route 2001:1:1:1::/64 Serial1/0
no ipv6 route 2001:4:4:4::/64 Serial1/2
no ipv6 route 2001:4:4:4::/64 Serial1/1 25
no ipv6 route 2001:34:34:34::/64 Serial1/1
no ipv6 route 2001:34:34:34::/64 Serial1/2

R3
conf t
no ipv6 route 2001:1:1:1::/64 Serial1/1
no ipv6 route 2001:1:1:1::/64 Serial1/3 25
no ipv6 route 2001:4:4:4::/64 Serial1/3
no ipv6 route 2001:4:4:4::/64 Serial1/1 25
no ipv6 route 2001:12:12:12::/64 Serial1/3 25
no ipv6 route 2001:12:12:12::/64 Serial1/1
no ipv6 route 2001:24:24:24::/64 Serial1/3
no ipv6 route 2001:24:24:24::/64 Serial1/1

R4
conf t
no ipv6 route 2001:1:1:1::/64 Serial1/2
no ipv6 route 2001:1:1:1::/64 Serial1/3 25
no ipv6 route 2001:12:12:12::/64 Serial1/2
no ipv6 route 2001:12:12:12::/64 Serial1/3 25
no ipv6 route 2001:23:23:23::/64 Serial1/3
no ipv6 route 2001:23:23:23::/64 Serial1/2

---

■ RIPng 라우팅 구성

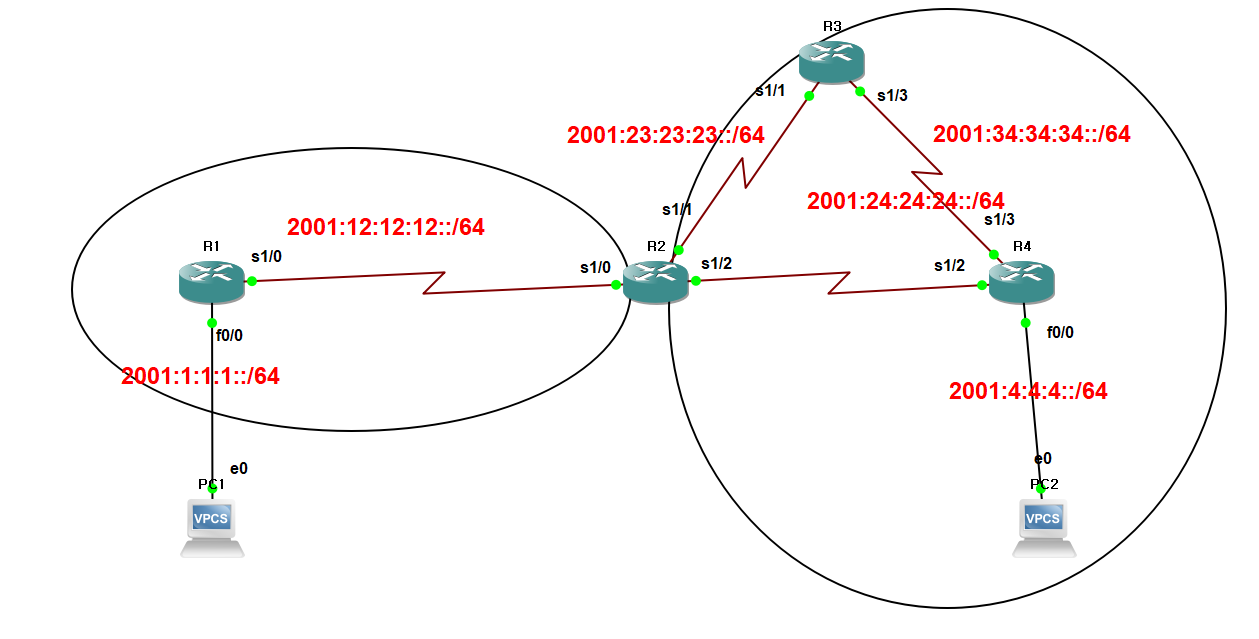

RIPng 토폴로지



R1

conf t
ipv6 router rip 1
int fa0/0
ipv6 rip 1 enable
int s1/0
ipv6 rip 1 enable



R2

conf t
ipv6 router rip 1
int s1/0
ipv6 rip 1 enable
int s1/1
ipv6 rip 1 enable
int s1/2
ipv6 rip 1 enable



R3

conf t
ipv6 router rip 1
int s1/1
ipv6 rip 1 enable
int s1/3
ipv6 rip 1 enable



R4

conf t
ipv6 router rip 1
int fa0/0
ipv6 rip 1 enable
int s1/2
ipv6 rip 1 enable
int s1/3
ipv6 rip 1 enable



do sh ipv6 int s1/0

linklocal 와이어샤크 ripng => 도착지 멀티캐스트



R1에서 RIPng를 삭제 후 Static으로 재구성

no ipv6 router rip 1
ipv6 route ::/0 s1/0



R2

conf t
ipv6 route 2001:1:1:1::/64 s1/0



이제 R3, R4에서는 2001:1:1:1::/64 정보가 삭제되어 있을 것이며, R2에서 Static을 RIPng로 재분배 해서 경로 학습이 되도록 구성



R2

conf t
ipv6 router rip 1
redistribute static metric 1

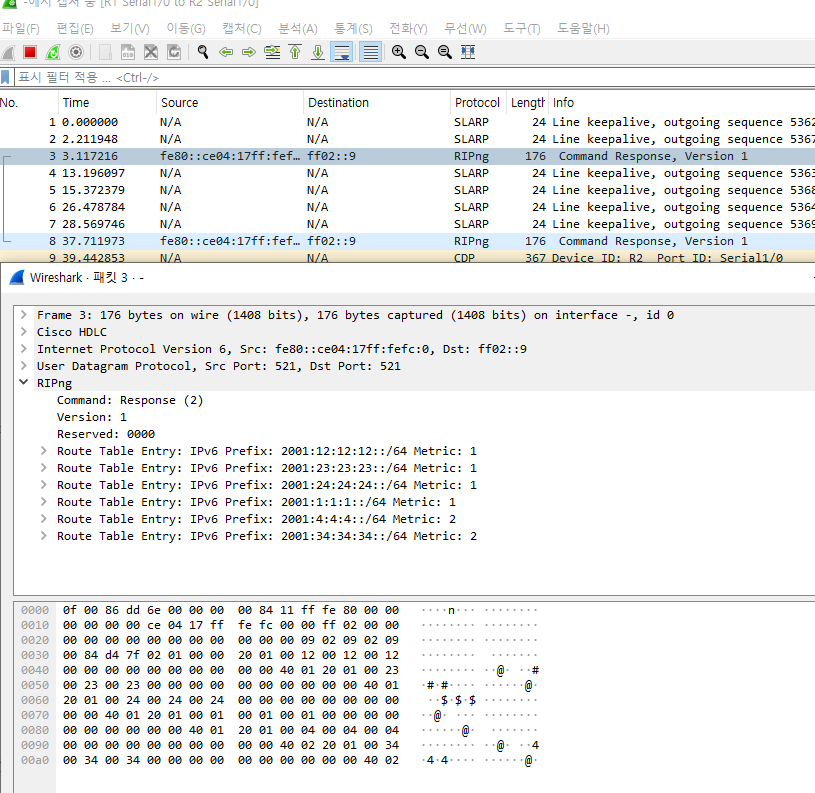

RIPng 패킷 확인

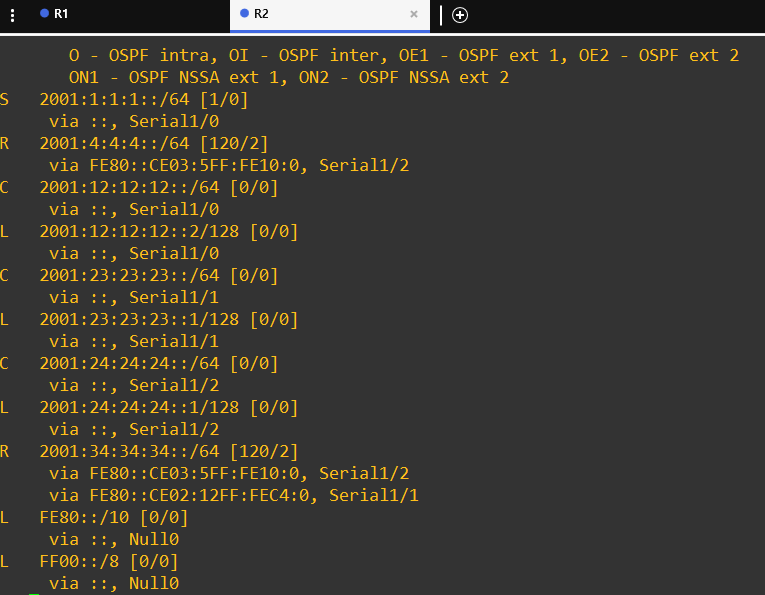

R2 라우팅 테이블
